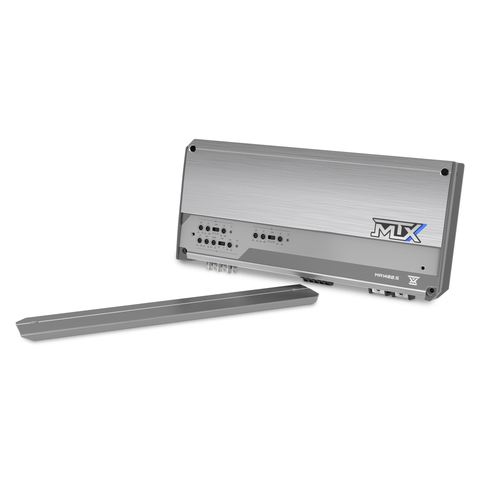

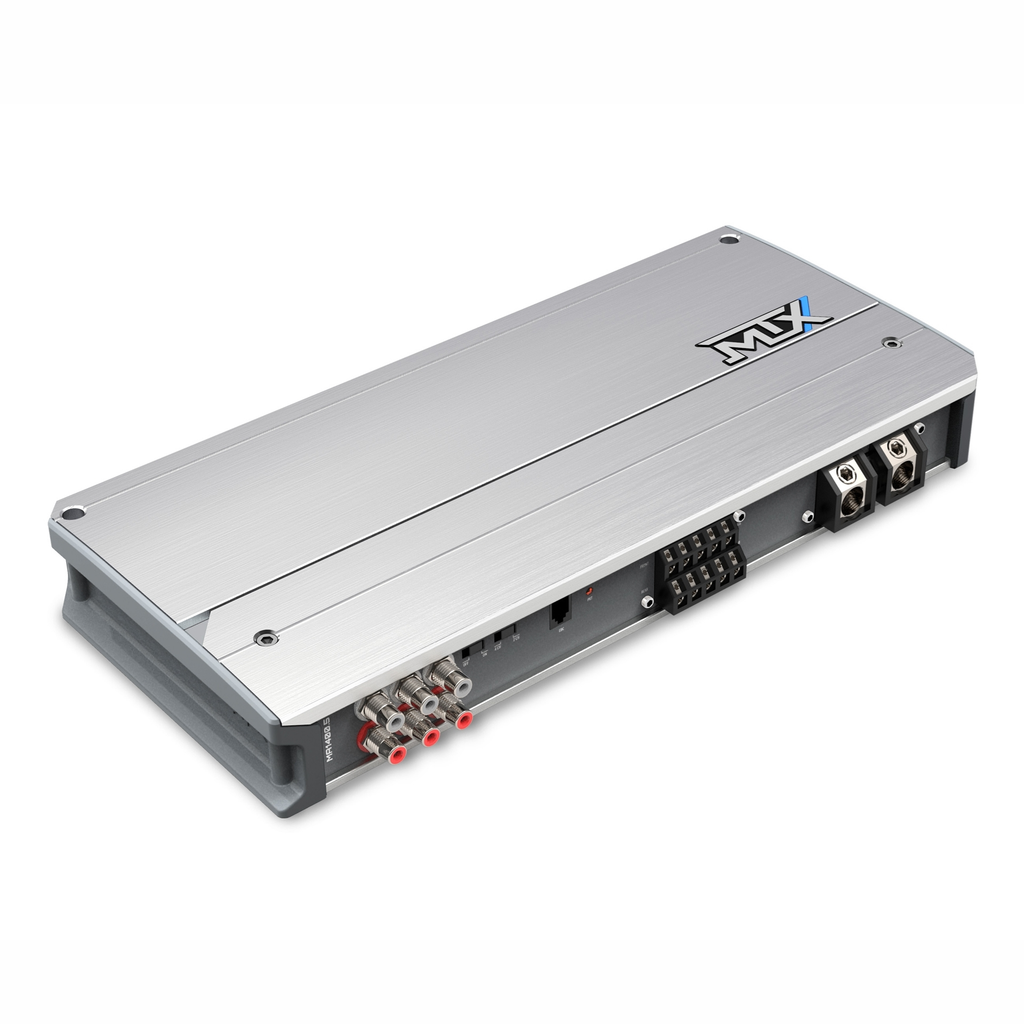

The MA1400.5 five-channel marine amplifier from MTX powers your entire boat’s audio system with full-range clarity and deep, resonant bass. With dedicated channels for both speakers and a subwoofer, this compact powerhouse delivers efficient performance and precise control- perfect for open-water adventures or dockside hangs.
Features:
- Conformal Coated Circuit Board for Water & Salt Resistance
- Stainless Steel Hardware to Prevent Corrosion
- 1400 Watts RMS Power Output
- Four Full-Range Channels and One Mono Subwoofer Channel
- High-Efficiency Class-D Circuit Design
- Adjustable Gain, Crossover, and Bass Boost Controls
- Hidden Control Panel for a Clean Look
- Included External Bass Control Remote
- Power and Protection LED Status Indicator
- Thermal, Short, and Over/Under Voltage Protection
- High-Quality Tiffany-Style RCA Input
- 10V High-Level Audio Input Compatibility
- Clip Detection Light for Tuning Optimization
- Surface Mount Component Technology
- Direct Insert Power and Speaker Terminals
- Dyno Power Rating Certificate
Specifications:
- Description: 5-Channel
- Topology: Class D
- 4Ω RMS Power Output: 100W x 4 Channels + 300W
- 2Ω RMS Power Output: 150W x 4 Channels + 500W
- 4Ω RMS Bridged Power Output: 300W x 2 Channels (1/2/3/4)
- 1Ω RMS Power Output: 800W (Sub Only)
- THD: < 0.4%
- Signal to Noise Ratio: > 95dB
- Frequency Response: 20Hz - 20KHz (Ch1-4) 20Hz - 250Hz (Sub)
- Crossover: 40Hz - 400Hz (CH1-4) 50Hz - 250Hz (Sub)
- Subsonic Filter: 10Hz - 55Hz (Sub)
- Maximum Input Signal: 10V
