The MTX ThunderLink TL-8.8DSP is an 8-Channel Digital Signal Processor designed to give complete control over system tuning and sound optimization. With powerful onboard processing and a robust software interface for PC, iOS, and Android, it allows detailed adjustment of equalization, crossover behavior, and time alignment for fully customized audio performance.
USER-FRIENDLY GUI FOR FASTER SETUP
The control interface is designed to make setup straightforward and efficient. Clear menus, visual feedback, and logical signal flow help reduce guesswork during tuning, allowing systems to be configured quickly without digging through overly complex menus.
COMPACT, INSTALLATION-FRIENDLY DESIGN

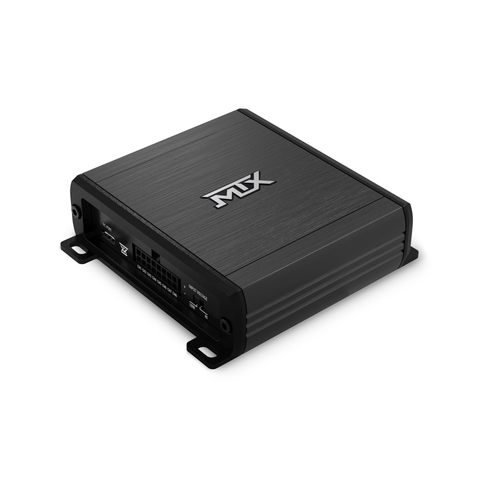

The TL-8.8DSP packs full-featured processing into a compact chassis designed to fit where space is limited. Its small footprint makes it easy to mount under seats, behind trim panels, or near amplifiers, giving installers more flexibility without sacrificing capability.
MULTIPLE PRESET MEMORY SLOTS
The TL-8.8DSP includes six preset memory slots for storing custom tuning profiles directly in the processor. Presets can also be saved and loaded through the software, making it easy to transfer a tune to another processor or reuse a baseline setup on similar vehicles. Once stored, presets can be quickly selected through the Bluetooth app without needing physical access to the DSP.
BASIC AND ADVANCED EQ TUNING MODES
The TL-8.8DSP offers both Basic and Advanced modes for equalizer tuning to match different levels of system setup. In Basic mode, 13 EQ bands are available with fixed frequency and Q values for fast, straightforward adjustments. Advanced mode unlocks full control with 31 bands of parametric EQ, allowing gain, frequency, and Q to be adjusted for precise system tuning.

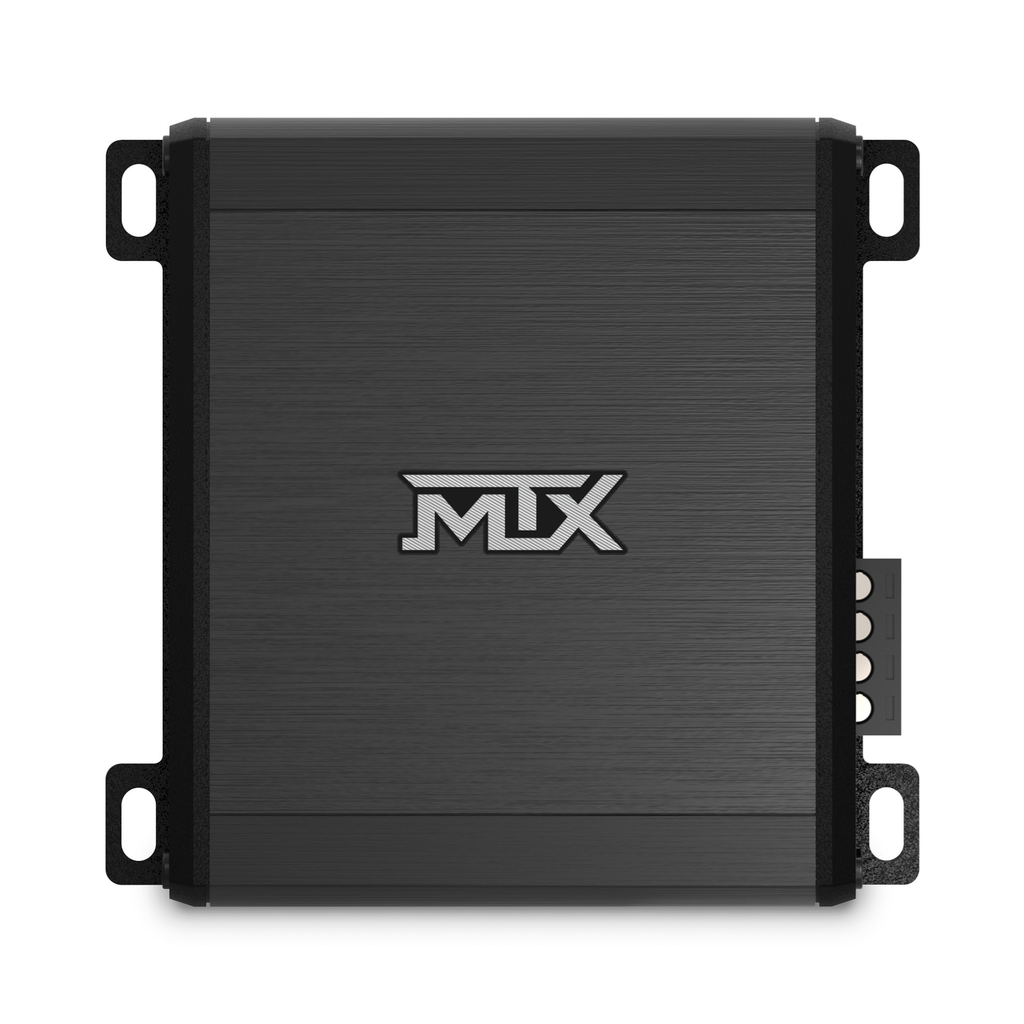

Dimensions & Details
Dimensions
-
A - Length:4” (102 mm)
-
B - Width:3 ⅞” (98 mm)
-
C - Depth:1 ⅛" (28 mm)
Features
- BT / PC Adjustable DSP Powered by ADAU1452 DSP Chip
- Tuned via Windows PC, controlled via iOS and Android

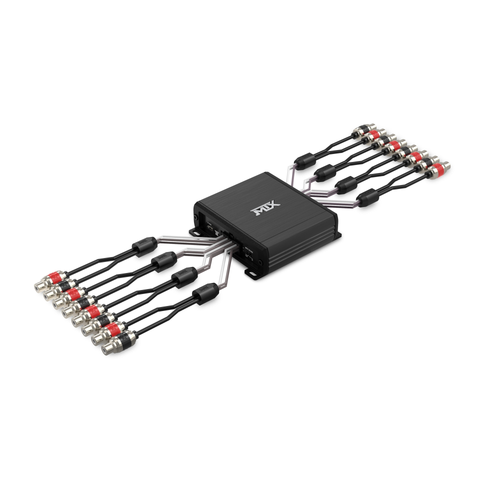

- 8-Channel High / Low Level Input
- High Level Input Up To 16V
- 31 Band Parametric EQ
- Selectable Crossover Type: Butterworth, Linkwitz-Riley, Bessel
- Variable Crossover Slope: 12 / 18 / 24 / 48dB per Octave
- Adjustable Time Alignment: 0 – 20ms
- 6 Presets for Custom Tunes
SPECIFICATIONS
- Description: 8-CH Digital Signal Processor
- Maximum Speaker Level Input: Low Range: 2.1V, High Range: 8.4V
- Input impedance: 2 kΩ
- Preamp Outputs: 8
- Maximum Output Level: 4.5V RMS
- Output impedance: 100 Ω
- Total Harmonic Distortion: < 0.21%
- Signal to Noise Ratio: >90dB
- Frequency Response: 20Hz - 24kHz
- Recommended Fuse Rating: 2A
- Warranty Period: 12 months from date of purchase
User Manual: Here
