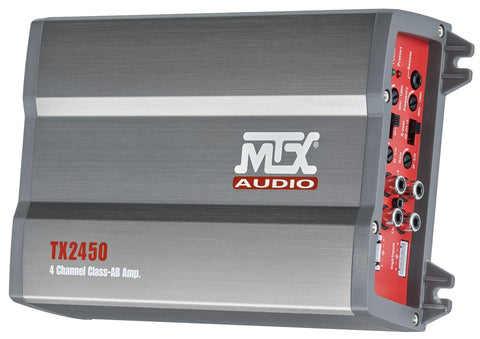

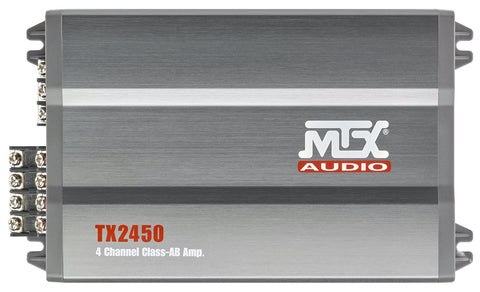

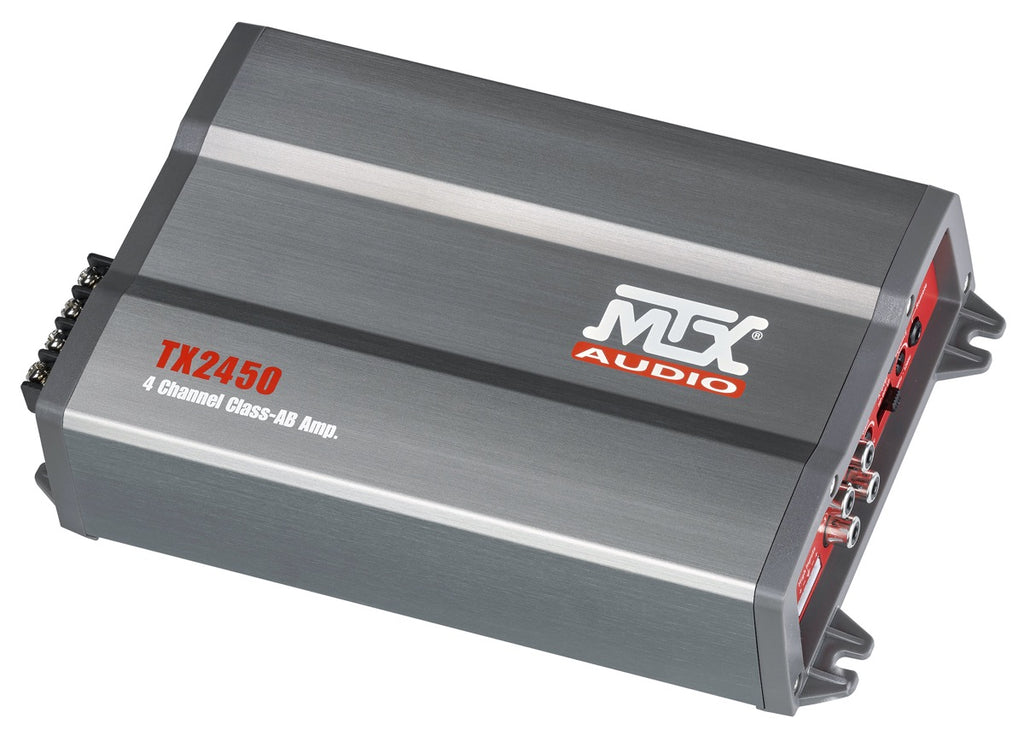

MTX Audio TX Series 300W 4-Channel Amplifier - TX2450

  • Sale
  • Regular price $349.00

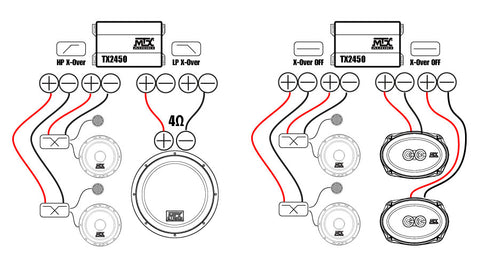

The MTX TX2450 amplifier is powerful and very flexible. It can power up 4 speakers (2Ω~8Ω) at the front, at the rear. Another example, it can power up the 2 front speakers plus a subwoofer. In any case, it shines with its legendary dynamics and exceptional musicality. The variable active filter allows it to be extremely precise: 12dB/oct high pass or variable low pass from 50 to 120Hz. If you don't know where to start adjusting the active filter, the potentiometer is equipped with an 80Hz "click" position. To avoid interference problems, we have equipped the TX2450 with balanced inputs. They perfectly isolate the audio ground of the amp so that it does not mix with the noisy ground of the power supply. This is a powerful technique that is usually found on high end amps. If your car stereo does not have RCA outputs, you can connect the TX2450 to the high level inputs. All you need to do is connect the factory speaker output cables directly to the high level input of the amplifier. Simple yet very practical.

Also available, matching TX2 1/2 channel amplifier TX275 and TX strappable 500W RMS TX6500D and 1000W RMS TX81000D.

Features :

  • Classic Class-AB topology
  • Very compact size for an easy installation
  • 2Ω stereo and 4Ω bridged compatible
  • High quality components
  • 12dB/Oct flexible x-over
  • Full aluminium construction (excluding end-caps)
  • Thermo regulated fan connector (for one or two external fans)

Specifications :

  • Class-AB 4-channel amplifier
  • CTA2006 certified power
    - 4x 50 watts RMS @ 4Ω THD+N ≤1% (60W RMS in testing with SMD / AP)
    - 4x 75 watts RMS @ 2Ω THD+N ≤1%
    - 2x 150 watts RMS bridged @ 4Ω THD+N ≤1%
  • Active x-over
    - High-pass (HPF) 12dB/Oct variable from 50Hz to 120Hz
    - Low-pass (LPF) 12dB/Oct variable from 50Hz to 120Hz
  • Signal/Noise ratio (1 watt) : >73dB
  • THD+Noise (Distortion) (1 watt) : ≤1%
  • Frequency response (±1dB) : 20Hz-30000Hz
  • Input sensitivity RCA : 200mV to 6V
  • Dimensions : 135mm x 220mm x 52mm

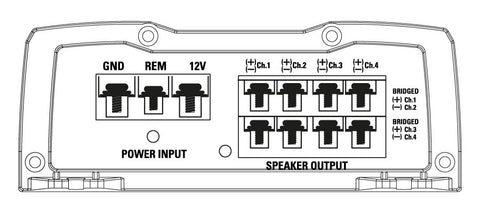

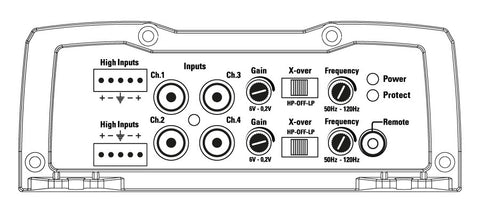

  • High and low level inputs

Download product user manual here
