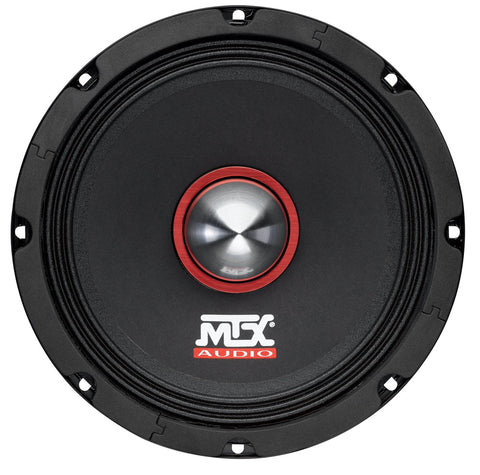

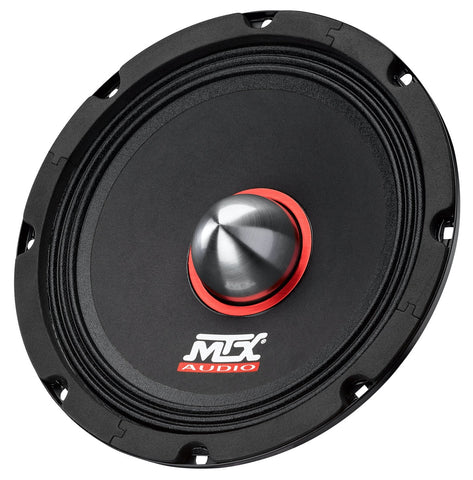

MTX Audio RTX Series 150W 8" Midrange Speaker - RTX84 X2 (Pair)

  • Sale
  • Regular price $258.00


The MTX RTX84 midrange is a 20cm (8”) high output loudspeaker. With very little power, it reproduces a lot of sound. These mid-bass drivers handle 150W RMS with an efficiency over 97dB. Intended for SQL installations and open door sound systems. The sound is very powerful and live. It shines with a striking realism, softness and exceptional musicality. Despite its very high efficiency, it is never brutal or aggressive. Its large 38mm coil, its aluminium phase plug to fight against standing waves, its extra large magnetic structure (Ø134mm), its fabric suspension and its pressed paper cone are all assets that help with the sound quality and transducer performance.



The RTX84 is a 8" driver designed to specifically produce mid bass frequencies. This type of speaker is ideal for use in installations that include subs producing high amounts of low frequency bass. The mid bass driver fills in the sound frequencies that the subwoofer does not.

MTX RoadThunder Extreme Speaker Cone

Features :

  • Exceptional sound quality with an incredible musicality
  • 50mm 2” giant voice coil for more power handling
  • 134mm extra large strontium magnet for a better cone control and more power handling
  • Compressed paper cone for more efficiency, softness and high quality sound
  • Treated Cloth edge suspension for a better efficiency
  • Highly detailed midrange Good bass response
  • Easy to install - Fits into the original 20cm 8” cut outs (Ø178mm)
  • Sold by piece - You need two RTX84 for a stereo system
  • Design to play with MTX RTX2BT tweeters

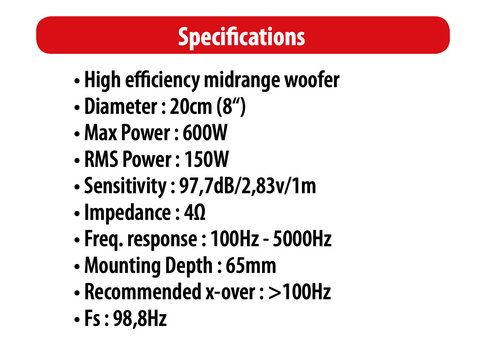

Specifications:

  • High efficiency midrange driver
  • Diameter: 20cm 8”
  • Peak Power: 600W
  • RMS Power: 150W
  • Sensitivity: 97,7dB/2,83v/1m
  • Impedance: 4Ω
  • Freq. response: 100Hz - 5000Hz
  • Mounting Depth : 65mm
  • Recommended x-over : >100Hz (Speaker may fail if you do not set a HPF)

TS Parameters:

  • Re : 3,10Ω
  • Le : 0,092mH
  • L2 : 0,488mH
  • R2 : 2,39Ω
  • Cmes : 403,97μF
  • Res : 43,18Ω
  • Fs : 98,8Hz
  • Mms : 20,495g
  • Mmd : 16,962g
  • Rms : 01,175Kg/s
  • Cms : 0,127mm/N
  • Kms : 7,89N/mm
  • Bl : 7,123N/A
  • Qms : 10,823
  • Qes : 0,777
  • Qts : 0,725
  • Vas : 8,1998 liters
  • Sd : 213,82cm2
  • Lnom : 97,7/2,83V/1m

Download product sheet here
